Updated Aug 2026
11 min read

Electricity

Charge in Motion

The Force That Runs the World

Flip a switch and a room fills with light. Plug in a phone and it charges. Touch a doorknob in winter and a tiny spark jumps. All of these are electricity at work. It powers nearly every piece of modern technology, from the device you are reading this on to the satellites overhead. Yet electricity is not some special substance pumped through wires. It is the movement of charged particles driven by the electromagnetic field, the same field that holds atoms together and produces light.

Understanding electricity means understanding what charge is, how it moves, what pushes it, and what happens when it flows in useful patterns. Humans lived without harnessing electricity for hundreds of thousands of years. Once we figured it out in the 1800s, civilization changed within a single generation.

What Is Charge?

Electric charge is a fundamental property of certain particles, just like mass. Electrons carry negative charge. Protons carry positive charge. Neutrons carry none. These are not labels humans invented for convenience. Charge is a measurable, conserved quantity that determines how particles interact through the electromagnetic field.

Like charges repel each other. Opposite charges attract. This is the most basic rule of electricity and it is encoded in the electromagnetic field that permeates all of space. When you rub a balloon on your hair, electrons transfer from your hair to the balloon. The balloon becomes negatively charged, your hair becomes positively charged, and the two attract. That is static electricity, charge sitting in one place rather than flowing.

Same sign above, one of each below

The amount of charge on a single electron is incredibly small, about 1.6 times ten to the minus nineteen coulombs. But there are enormous numbers of electrons in any piece of matter. A single copper penny contains roughly a trillion trillion electrons. Electricity becomes useful when you get even a tiny fraction of them moving together in the same direction.

Current: Charge in Motion

Electric current is simply the flow of charged particles. In a copper wire, the charge carriers are free electrons, electrons not tightly bound to any particular atom, drifting through the metal lattice. In salt water, the carriers are ions, whole atoms or molecules with a net charge. In a semiconductor, both electrons and missing-electron sites called holes can carry current. The physics does not care what is moving, only that net charge is flowing.

One piece of bookkeeping trips up everyone who meets a circuit diagram. Current is drawn running from plus to minus, the direction positive charge would move, but in a metal wire the actual carriers are electrons and they go the other way. Benjamin Franklin fixed the convention a century and a half before anyone knew electrons existed, and by the time the sign was known to be backward, every equation and every diagram already used it. Both descriptions give the same answers, so nobody changed it.

A common misunderstanding is that electrons race through a wire at the speed of light. They do not. Individual electrons drift surprisingly slowly, typically less than a millimeter per second. What travels fast is the electric field itself. When you flip a switch, the electromagnetic field propagates through the wire at nearly the speed of light, pushing every free electron in the wire simultaneously. It is like pushing one end of a long tube filled with marbles. The marble at the far end pops out almost instantly, even though no individual marble traveled the full length.

The gap here is a hundred to one; in the wire it is three hundred billion to one.
Two branching lightning bolts over a lit city skyline at night, the left one striking the spire of a tall skyscraper
The flash you see runs upward, along a channel the descending leader had already cut.

Current is measured in amperes. One ampere means one coulomb of charge passing a point per second, which is about 6.2 billion billion electrons per second. A phone charger delivers about one ampere to the phone. A household circuit carries up to 15 or 20 amperes. A lightning bolt peaks at around 30,000 amperes, but only for a fraction of a millisecond.

Follow One Electron and See Where It Gets You

The marble picture is better than the racing one, but it still leaves the natural conclusion in place: whatever the electrons are doing, they are the thing delivering the power. Test that. Take an ordinary lamp on ten meters of household wire, drawing about one ampere. Put a mark on one electron at the switch and follow it.

It moves down the wire at roughly seven hundredths of a millimeter per second. At that pace it reaches the lamp about a day and a half later. The lamp, meanwhile, lit in less time than it takes light to cross the room. Whatever arrived, your electron was not it, and will not be for another thirty-eight hours.

The obvious repair is the marbles: the electron at your end never had to arrive, it only had to shove the next one along. That is genuinely closer, and for a battery it carries you a long way. So take it to the outlet on your wall, where the current alternates. There the electrons do not advance at all. They are pulled one way, pushed back the other, fifty or sixty times a second, and after an hour of running a heater each one sits within a hair of where it began. Net travel: nothing. Energy delivered: an hour of heat.

One line comes back to zero every swing. The other one only ever climbs.

Nothing was carried down the wire, because nothing went down the wire. The energy crosses the room in the electromagnetic field around the conductor, and the electrons are the rail that shapes and aims it. Their jiggling is not the delivery. It is what holds the field in the right place to do the delivering.

One honest limit on that, because it is easy to overcorrect. The wire is not a bystander. Surface charges along it are what steer the field in the first place, and the heat in a filament is field energy flowing back into the metal and being dissipated there. Field, wire, and electrons are one coupled system. What the day-and-a-half electron rules out is only the story most people carry: that electricity is a delivery service and the electrons are the parcels.

Voltage: The Push Behind the Flow

Current does not flow on its own. Something has to push charges along. That push is voltage, also called electric potential difference. A battery creates voltage by using chemical reactions to pile up electrons on one terminal and strip them from the other, creating a charge imbalance. Connect a wire between the two terminals and the imbalance drives a current. The bigger the voltage, the harder the push.

Think of voltage like water pressure in a pipe. High pressure pushes water through faster. High voltage pushes electrons through a wire harder. A standard household outlet provides about 120 or 230 volts, depending on where you live. A car battery provides 12 volts. The static shock from a doorknob can be several thousand volts, but the amount of charge is so tiny that it is harmless. What makes electricity dangerous is not voltage alone or current alone, but how much current flows through your body for how long.

Higher voltage is a bigger drop, and a faster flow through the turbine

Generators at power plants create voltage by spinning coils of wire inside magnetic fields. This is electromagnetic induction, discovered by Michael Faraday in 1831. A changing magnetic field creates an electric field that pushes charges through the wire. Almost every power station in the world works this way, whether it burns coal, splits atoms, or catches wind. The energy source spins a turbine, the turbine spins a magnet, and the magnet creates the voltage that pushes current into the grid. Solar panels are the one large-scale exception. They have no turbine and no magnet, because light knocks electrons loose in silicon directly.

Resistance: What Slows Charge Down

Not all materials let charge flow freely. Metals like copper and silver are excellent conductors because their atoms share outer electrons that can move with minimal resistance. Rubber, glass, and dry wood are insulators: their electrons are tightly bound and do not move. Resistance measures how strongly a material opposes the flow of current.

Electrons collide with atoms in the filament, creating heat and light

When current flows through a material with resistance, energy is converted into heat. This is why light bulb filaments glow, why electric heaters get hot, and why wires can overheat if too much current flows. The relationship is simple and was first stated by Georg Ohm in 1827: current equals voltage divided by resistance. Double the voltage, double the current. Double the resistance, halve the current. This single relationship governs the design of almost every electrical circuit.

Resistance is not always a nuisance. Toasters, ovens, and incandescent bulbs all work because of resistance. Every electronic device uses resistors to control how much current flows where. Without resistance, circuit design would be impossible. But in power transmission, resistance is pure waste. This is why power lines operate at extremely high voltages, hundreds of thousands of volts. Higher voltage means less current for the same power, and less current means less energy wasted as heat in the lines.

Circuits: Closed Loops of Flow

For current to flow continuously, charges need a complete loop to travel through. This is a circuit. A battery pushes electrons out one terminal, through a wire, through whatever device is connected, a bulb, a motor, a phone, and back into the other terminal. Break the loop and current stops instantly. This is what a switch does. It opens a tiny gap in the circuit that electrons cannot cross.

Fifty electrons are drawn here; in real copper each atom gives up one to the current.

Real circuits contain many components. Resistors limit current. Capacitors store charge temporarily, like tiny rechargeable energy reservoirs. Inductors resist changes in current by storing energy in magnetic fields. Transformers change voltage levels using electromagnetic induction. Diodes allow current to flow in only one direction. And transistors act as tiny switches or amplifiers that a voltage can control, which is the property that lets one part of a circuit operate another and makes computing possible at all. A modern processor contains billions of transistors, each smaller than a virus, switching on and off billions of times per second.

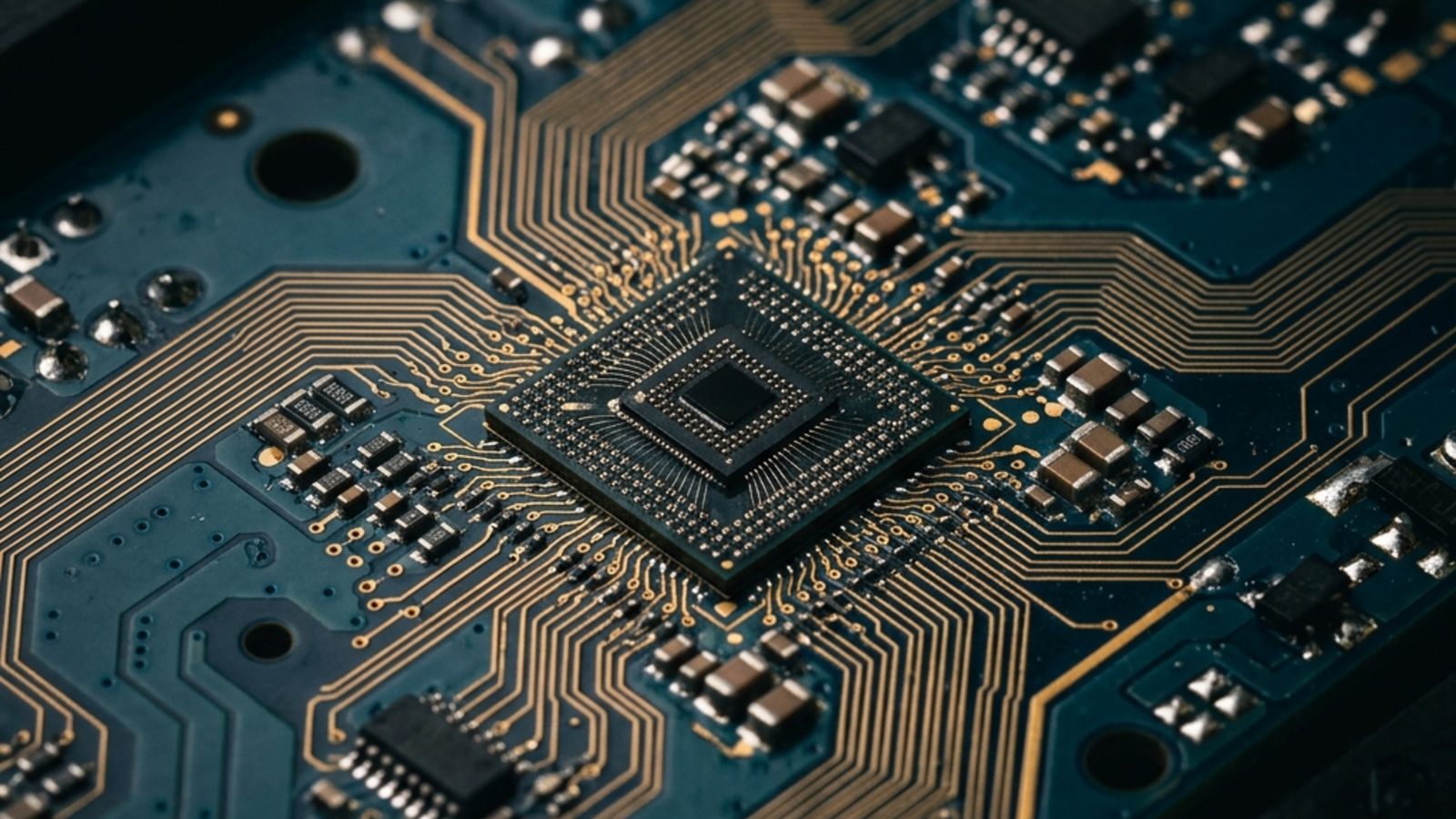

Macro view of a printed circuit board with copper traces and components
The board itself is fiberglass, there to make sure nothing conducts except the traces.

Two Kinds of Current

Direct current, or DC, flows in one direction. A battery produces DC. The current flows steadily from one terminal to the other. Simple, predictable, and exactly what electronics need. Your phone, laptop, and every digital chip run on DC.

Alternating current, or AC, reverses direction many times per second. In most countries it switches back and forth 50 or 60 times per second. This might sound less useful than steady DC, but AC has an enormous practical advantage: transformers can change its voltage easily. Step it up to very high voltage for efficient long-distance transmission, then step it down for safe household use. This was the key insight that made modern power grids possible.

The battle between AC and DC played out dramatically in the 1880s and 1890s, with Thomas Edison championing DC and Nikola Tesla and George Westinghouse championing AC. AC won for power distribution because transformers made long-distance transmission practical. But DC never went away. Modern electronics need DC, so nearly every device you plug in contains a converter that turns the AC from the wall into the DC that circuits actually use. Today the lines between AC and DC are blurring again, as high-voltage DC transmission lines become increasingly important for long undersea cables and connecting renewable energy sources.

The Power Grid

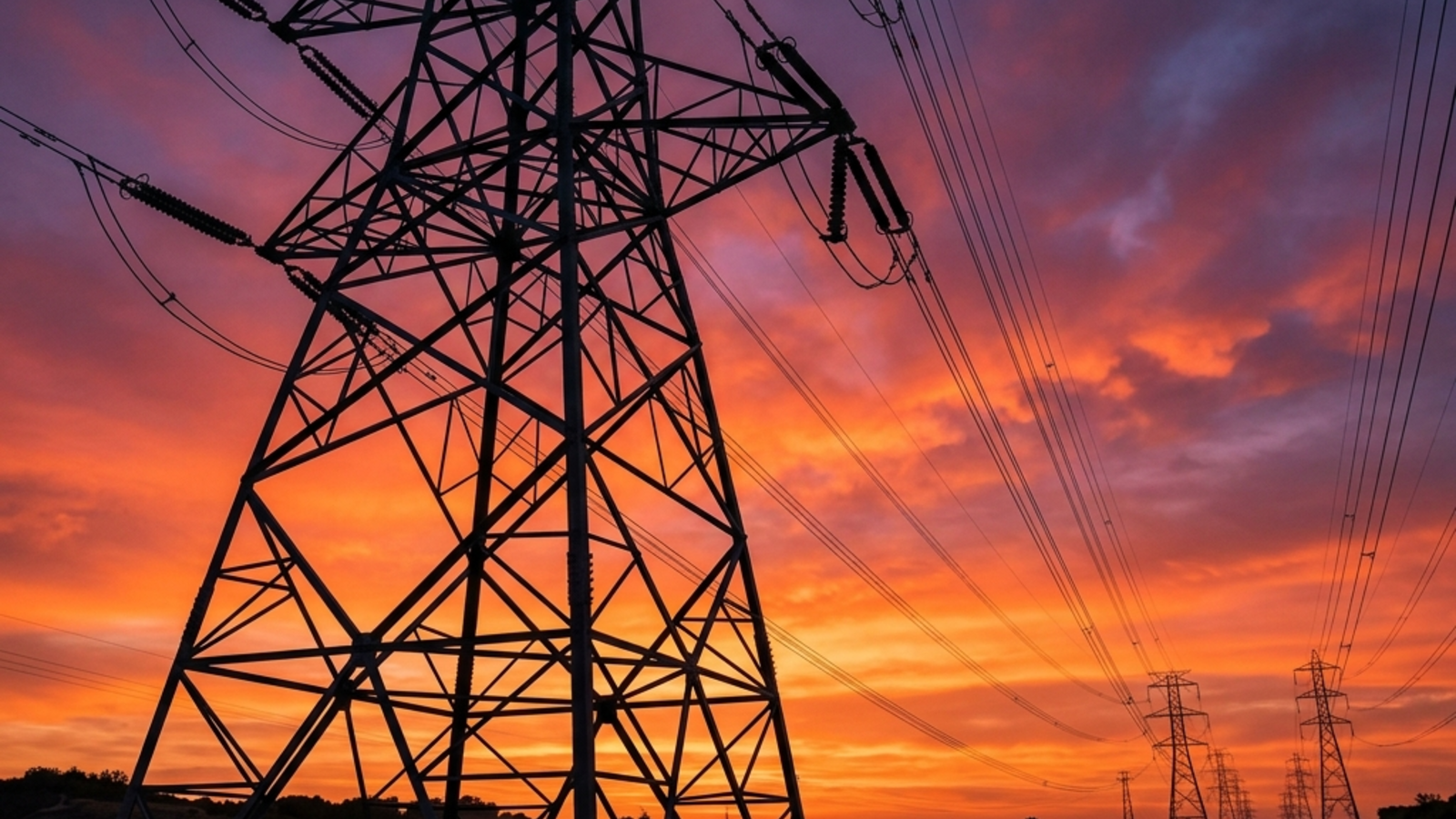

High voltage transmission towers against sunset sky
The discs in each hanging string are insulators, and higher voltage needs more of them.

The electrical grid is the largest machine humanity has ever built. Power plants, transmission lines, substations, and distribution networks form an interconnected system spanning entire continents. Electricity generated at a plant in one region can power a home hundreds of kilometers away, arriving within a fraction of a second.

The grid has to balance supply and demand in real time. Electricity cannot be easily stored in large quantities, so generators must produce exactly as much power as consumers are using at every moment. The imbalance shows up as frequency. Generators are spinning machines: produce more power than the load is taking and they speed up, so the grid frequency rises; let the load outrun the generation and they are dragged down, and it falls. Frequency is the one quantity that is identical everywhere on a synchronized network, which is what makes it usable as the signal. Let it drift far enough in either direction and protective relays start disconnecting equipment. Grid operators monitor this balance constantly, ramping generators up and down to match changing demand, which peaks during hot afternoons and dips in the middle of the night.

Integrating renewable sources like solar and wind adds new challenges because their output depends on weather, not demand. Large-scale battery storage, pumped hydroelectric storage, and smart grid technologies are being developed to bridge the gaps. The physics of electricity generation has not changed since Faraday. What keeps evolving is how we manage and distribute the power.

Electricity in Nature and the Body

Electricity is not a human invention. It is woven into the fabric of biology. Every thought you have, every muscle you move, every heartbeat is triggered by electrical signals. Neurons communicate by firing brief electrical pulses called action potentials. These pulses travel along nerve fibers at speeds of up to 120 meters per second, carried not by electrons but by sodium and potassium ions flowing through channels in cell membranes.

Electric eels generate up to 860 volts to stun prey, using stacked cells called electrocytes that work like batteries wired in series. Sharks detect the faint electric fields produced by muscle contractions of hidden prey. Plants generate tiny voltages when their roots encounter obstacles. Electricity is as fundamental to life as chemistry and genetics.

An electric eel, long and gray-brown with a fin running the length of its underside, hanging in dark tannin-stained water among submerged roots
The heart and gut sit in the front fifth; everything behind is stacked electrocytes.

In the atmosphere, electricity operates on a spectacular scale. Thunderstorms separate charge, building up enormous potential differences between clouds and ground. Breaking down dry air takes about 3 billion volts per kilometer, and at this point the story has a hole in it that nobody has closed. Every field measurement made inside a thundercloud, by balloon, aircraft and rocket, comes back roughly ten times too weak. How the first channel gets started is still an open question, and the leading answers involve either cosmic-ray secondaries seeding a runaway avalanche of electrons, or small patches inside the cloud where the field is locally far stronger than the average. Once a channel does form, the discharge heats it to 30,000 degrees in microseconds, producing the shock wave you hear as thunder. About 45 lightning flashes happen somewhere on Earth every second of every day, and roughly a quarter of them reach the ground.

One Face of the Electromagnetic Field

Electricity is not a separate force. It is one face of the electromagnetic interaction, the same field that produces light, holds atoms together, and governs chemistry. Moving charge creates magnetic fields. Changing magnetic fields create electric fields. These two aspects interweave so tightly that they are really one phenomenon described by a single set of equations. When you use a motor, you are converting electricity into magnetism into motion. When you use a generator, you are running the process backward.

What makes electricity so important to civilization is not that it is a unique form of energy but that it is the most versatile. It can be generated from almost any energy source, transmitted efficiently over long distances, and converted into light, heat, motion, sound, or computation at the destination. No other energy carrier offers that flexibility. Understanding how charge moves, what drives it, and what resists it is understanding the physical backbone of the modern world.

A little confusion is the first step to understanding
