Nuclear Fission

Energy From Splitting Atoms

What One Neutron Sets Off

Take a uranium-235 nucleus, 92 protons and 143 neutrons packed into a space tens of thousands of times smaller than the atom around it. Strike it with a single slow-moving neutron. The nucleus absorbs it, wobbles violently, and tears itself in half. Two lighter nuclei fly apart at enormous speed. Two or three free neutrons scatter outward. And a burst of energy is released, roughly two hundred million electron volts from one atom. That is nuclear fission, and it powers roughly ten percent of the world’s electricity right now. The more common isotope, uranium-238, is far harder to split with slow neutrons and makes up over 99 percent of natural uranium. This is why fission fuel has to be "enriched": the rare fissile isotope, U-235, is concentrated from 0.7 percent in raw ore to a few percent for reactors or over 90 percent for weapons.

Unlike fusion, which merges light nuclei and powers stars, fission splits heavy ones. Both release energy for the same reason, by moving nuclei toward iron and the most tightly bound configurations in nature, approaching from opposite sides. But fission has one property that makes it uniquely powerful and uniquely dangerous: those free neutrons can split other nuclei, which release more neutrons, which split more nuclei. A chain reaction.

Chain Reactions

One neutron splits one uranium-235 nucleus. That fission event releases two or three neutrons. Each of those can split another nucleus, releasing two or three more. In the first generation, one fission. In the second, three. In the third, nine. In the fourth, twenty-seven. After eighty generations, roughly a microsecond of real time, the number of simultaneous fissions exceeds the number of atoms in a kilogram of uranium. The energy release is explosive.

But chain reactions do not have to be explosive. Everything depends on a single number: the multiplication factor, k. If each fission event produces on average exactly one neutron that goes on to cause another fission, k equals one. The reaction sustains itself at a constant rate. This is criticality, the operating state of every nuclear reactor. If k is less than one, the reaction dies out. If k is greater than one, it grows exponentially. The entire difference between a nuclear reactor and a nuclear weapon is whether k is held at exactly one or allowed to exceed it.

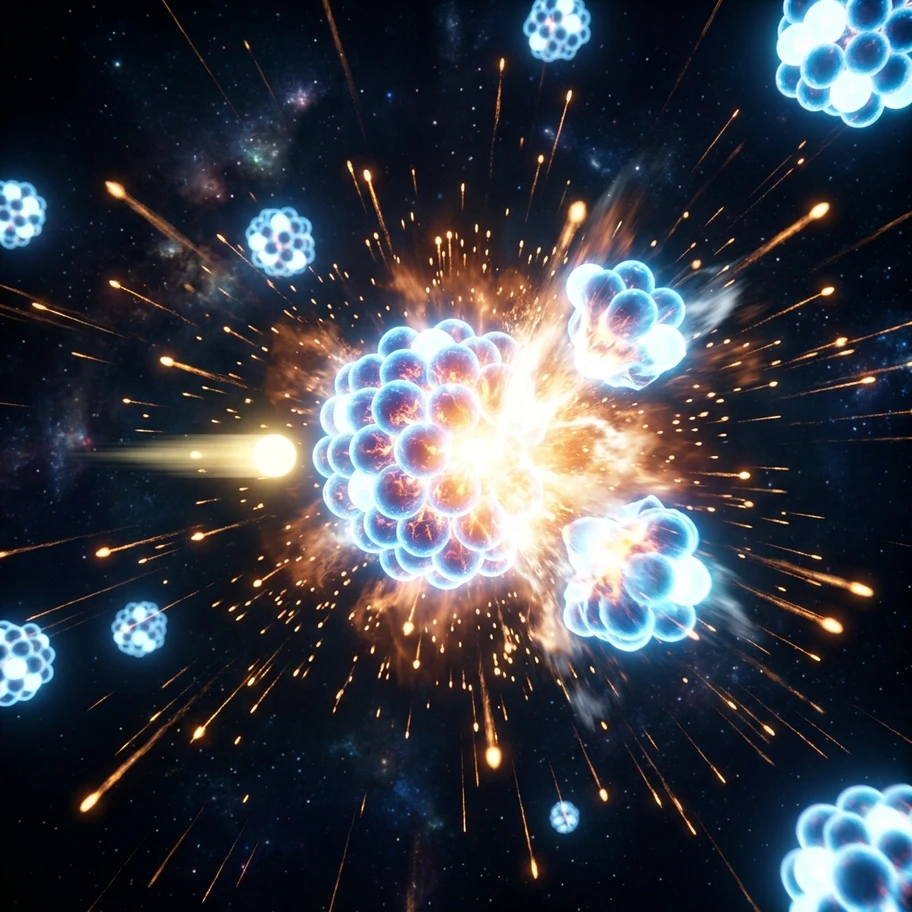

One split, then what the loose neutrons do: die out, hold steady, or run away
Nuclear fission chain reaction showing one neutron splitting a uranium nucleus which releases more neutrons that split more nuclei in an exponential cascade
A few generations fit in the frame; a kilogram of uranium runs through eighty.

Nuclear Reactors

A nuclear reactor is a machine for keeping k at exactly one. Fuel rods containing enriched uranium are arranged in a precise geometry. Between them, control rods made of neutron-absorbing material like boron or cadmium slide in and out. Push the control rods deeper and they absorb more neutrons, reducing k below one. The reaction slows. Pull them out and more neutrons reach the fuel, increasing k. Operators balance the reaction at criticality, releasing energy at a steady, controllable rate.

There is a problem hiding in that description. If a generation of neutrons lasts a fraction of a microsecond, as the arithmetic above implies, a control rod moving on human timescales could never balance anything. The reactor would run away or die out long before an operator noticed. What rescues it is a quirk of the fission products themselves. About one neutron in every hundred and fifty from uranium-235 is not released at the moment of fission. It emerges seconds or minutes later, when a fragment left over from an earlier split decays and throws one out. Reactors are run so that the prompt neutrons alone are not quite enough to sustain the chain, and the last fraction of a percent needed to reach criticality arrives on that delayed schedule. The effective generation time stretches from microseconds to seconds, which is what makes the machine something a human being can steer. A reactor that reaches criticality on prompt neutrons alone is beyond control by definition, and that is what happened at Chernobyl.

The energy from fission heats a coolant, usually water. That hot water produces steam, which spins a turbine connected to a generator. From this point on, a nuclear plant works identically to a coal plant or a gas plant. The only difference is the heat source. One kilogram of uranium fuel contains roughly a hundred thousand times more energy than one kilogram of coal. A single fuel pellet the size of a fingertip produces as much energy as a ton of coal, 480 cubic meters of natural gas, or 564 liters of oil.

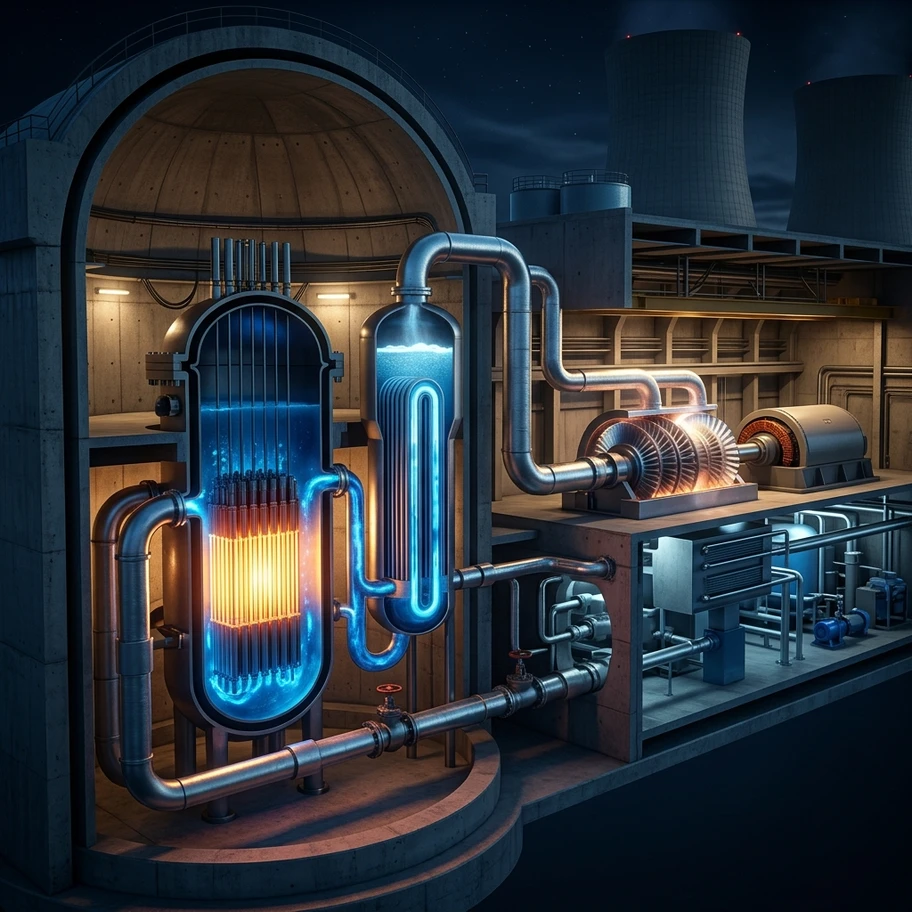

Cutaway diagram of a pressurized water nuclear reactor showing fuel rods, control rods, coolant loops, steam generator, and turbine
Nuclear reactor: controlled fission heats water, steam spins turbines, electricity flows
One neutron in 154 arrives seconds late, and that is what makes a reactor steerable.

Modern reactors incorporate multiple layers of safety. Negative temperature coefficients mean that if the core heats up, the reaction naturally slows down. Passive safety systems use gravity and natural circulation rather than pumps that could fail. Some advanced designs use molten salt as both fuel and coolant, operating at atmospheric pressure so there is nothing to explode. The physics of fission does not inherently demand danger. It demands respect and engineering precision.

Uncontrolled

The same physics that runs a reactor can be weaponized. If you assemble enough fissile material fast enough, with no control rods and no moderator to slow things down, k shoots far above one. The chain reaction runs away in microseconds. Energy release is measured in kilotons or megatons of TNT equivalent. This requires highly enriched material, above 90% uranium-235 or weapons-grade plutonium-239, and a precisely engineered implosion to compress it to supercritical density.

The first nuclear weapon was detonated on July 16, 1945, in New Mexico. Three weeks later, two were used against cities. The destructive power was unlike anything in human history. A single device, small enough to fit in an aircraft bomb bay, released energy equivalent to thousands of tons of conventional explosive. The existence of nuclear weapons fundamentally altered geopolitics, creating a deterrence framework that has shaped international relations for eight decades. Whether that framework has prevented larger wars or merely delayed them remains one of the most consequential open questions in human history.

Waste and Risk

Fission products, the lighter nuclei left over after a uranium atom splits, are intensely radioactive. Some isotopes decay in seconds. Others persist for thousands of years. Spent fuel must be stored securely, shielded from the environment, for timescales that exceed the lifespan of any human institution. This is the central unsolved problem of nuclear energy. The physics works. The engineering works. The political and social challenge of guaranteeing safe storage for ten thousand years has almost no precedent. Almost. Finland has excavated a repository four hundred meters down into bedrock nearly two billion years old, built to take spent fuel in sealed copper canisters and then be backfilled and left alone. It is the first of its kind anywhere, and reaching that point took roughly four decades of siting, consent, and review. The obstacle was never really the geology.

Reactor accidents have shaped public perception profoundly. Chernobyl in 1986 resulted from a flawed reactor design combined with operator errors during a safety test. Fukushima in 2011 resulted from a tsunami overwhelming backup power systems, disabling cooling. That sequence is worth spelling out, because the reactors did shut down correctly when the earthquake struck. Shutting down a reactor stops the chain reaction, but it does not stop the heat. The fission products already sitting in the core go on decaying, and in the first hours they give off several percent of full power, which is enough to melt the fuel if nothing carries it away. The tsunami destroyed the generators that ran the pumps. The chain reaction had stopped, and the cores melted anyway. Both accidents were preventable with better engineering and regulation. Both left lasting environmental and psychological scars. Yet the statistical record tells a counterintuitive story: per unit of energy produced, nuclear power has caused fewer deaths than any fossil fuel, including from accidents. Coal power plants release more radioactivity into the environment through fly ash than nuclear plants do during normal operation. Risk perception and actual risk diverge sharply for nuclear energy.

Comparison of energy density and waste between nuclear fission and fossil fuels showing a tiny fuel pellet versus tons of coal
One uranium pellet produces as much energy as a ton of coal, with a fraction of the waste

Proven, Carbon-Free, and Feared

Fission is one of the few proven technologies that can generate large-scale, carbon-free baseload electricity today, alongside hydropower where geography allows. France derives roughly 70% of its electricity from nuclear reactors and has among the lowest carbon emissions per kilowatt-hour of any industrialized nation. Globally, about 440 operable reactors in 32 countries produce roughly 10% of the world’s electricity. Fusion promises a cleaner future but is not yet producing power anywhere. Fission is here now.

The binding energy curve does not care about politics. It says that heavy nuclei can release energy by splitting, and light nuclei can release energy by merging. Humanity discovered both in the same decade. One we weaponized first and then harnessed for power. The other we are still learning to control. Fission split the atom and split public opinion. Whether it becomes a bridge to a sustainable energy future or remains trapped by the fear its own history created is not a physics question. It is a human one.
