Feynman Diagrams
Cartoons That Do the Math
The Problem Feynman Solved
Open any popular physics book and you will eventually run into a simple cartoon: two straight lines meeting at a point, with a squiggly line going off at an angle. It looks like a child's drawing of a slingshot. It is also one of the most important inventions in twentieth century physics. This is a Feynman diagram, and it does something remarkable. It turns a nightmare of quantum mechanical calculation into a drawing you can sketch on a napkin.
By the late 1940s, physicists had developed quantum electrodynamics, the quantum theory of light and charged particles. It worked beautifully on paper, but actually computing anything with it was brutal. Describing how two electrons scatter required adding up an infinite number of ways the interaction could happen, each one expressed as a terrifying integral. Even straightforward problems took weeks. Richard Feynman found a way to organize the mess visually. Every term in the calculation corresponds to a picture. Every picture corresponds to a term. You draw the physics first, then translate the drawing into numbers using a fixed set of rules.
How to Read One
Feynman diagrams use a handful of conventions. Time flows in one direction, usually left to right or bottom to top. Straight lines with arrows represent matter particles: electrons, quarks, muons, anything that carries charge or a matter label. Arrows pointing forward in time represent particles. Arrows pointing backward represent antiparticles. Wiggly lines represent photons. Curly lines represent gluons. Dashed lines can represent Higgs bosons or other scalar particles. Every place where lines meet is a vertex, and each vertex is an interaction where particles couple to a force.

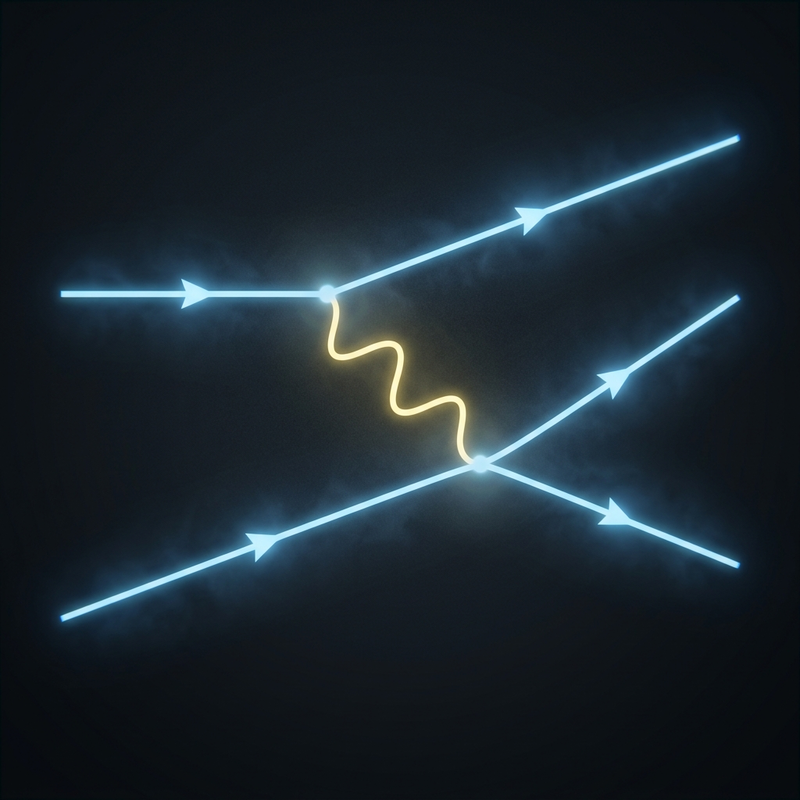

Look at the simplest diagram in physics. Two electron lines come in from the left. Somewhere between them they exchange a wiggly photon line. Two electron lines continue out to the right. That cartoon says: one electron emits a photon, the other absorbs it, and both change direction slightly as a result. This is how electromagnetism works at its core. Repulsion between like charges is not one particle pushing another across empty space. It is a continuous exchange of virtual photons. The diagram does not just illustrate the process; it represents a specific calculation you can do to predict how strongly the electrons deflect at a given energy.
Every force has its own vertex. Photons couple to charged particles. Gluons couple to colored particles like quarks. W and Z bosons couple to particles that feel the weak force. Higgs bosons couple to massive particles in proportion to their mass. Knowing which particles meet at which vertices tells you which processes are allowed in nature and which are forbidden. A diagram you cannot draw using legal vertices is a process that cannot happen.
Internal Lines Are Not Real Particles

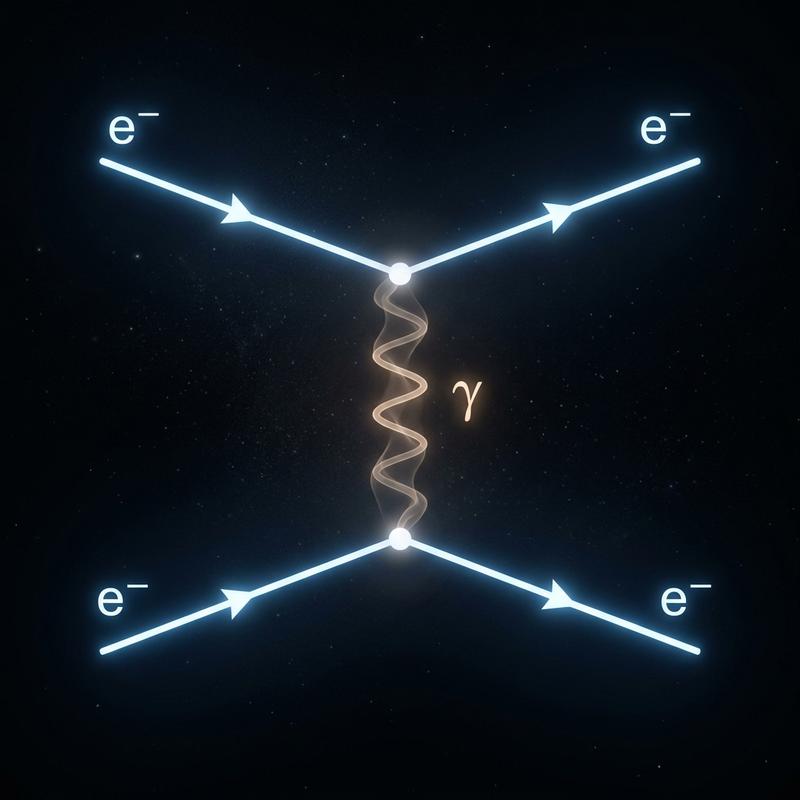

Here is the most important thing to understand about a Feynman diagram, and one that popular accounts often get wrong. The internal lines, the ones that do not reach the edges of the diagram, do not represent real particles traveling through space. They represent virtual particles: mathematical bookkeeping devices that let physicists track how field disturbances propagate between interactions. That wiggly photon exchanged between two electrons is not literally a tiny ball of light zipping between them. It is a term in a calculation that happens to have the mathematical properties of a photon.
External lines are different. They reach the edge of the diagram, which means they represent particles that actually enter or leave the laboratory: the electrons you fire in, the scattered electrons your detector catches. These follow the strict energy-momentum rules every real particle must obey. Internal lines are free from those rules precisely because they never get measured. They appear in the calculation and vanish before anything physical happens. They are how the math represents an interaction. The line exists on paper, not in spacetime.
This matters because it dissolves a common confusion. Popular accounts of "particles popping into existence for a brief moment" usually describe internal lines in a Feynman diagram. Those particles did not really pop anywhere. Someone just drew a diagram to calculate a physical process and labeled an internal line accordingly. Quantum fields fluctuate, virtual particles are the vocabulary physicists use to organize those fluctuations into calculations, and Feynman diagrams are the syntax that keeps the vocabulary consistent. Nothing actually pops.
Infinitely Many Pictures, Mostly Small
A real quantum mechanical process does not correspond to a single diagram. It corresponds to an infinite sum of diagrams. Two electrons could exchange one photon. Or two photons at once. Or one photon that briefly splits into an electron-positron pair before recombining into a photon. Or three photons. Or any combination you can draw using valid vertices. Nature does not pick one. It somehow sums over all of them simultaneously, and the final probability depends on the sum. This is staggering when you first encounter it. Every process involves infinity.
What saves the calculation is that each vertex contributes a small factor, roughly the square root of the fine structure constant, about 0.085 for electromagnetism. Diagrams with more vertices are suppressed by more powers of that small factor. A diagram with two vertices (one-photon exchange) dominates. A diagram with four vertices contributes a correction about 0.007 as large. Six vertices, about 0.00005. Each extra layer is a smaller and smaller refinement. You can truncate the sum after a few terms and still get an answer accurate to many decimal places. This is called perturbation theory, and it is why quantum electrodynamics is the most precisely tested theory in all of science.
The method is less forgiving for the strong force. The coupling there is close to 1 at low energies, so higher-order diagrams are not suppressed. Perturbation theory breaks down for most of the strong force's everyday behavior, which is why quark-gluon calculations require heavy numerical simulation called lattice QCD rather than pencil-and-paper diagrams. Feynman diagrams remain useful at high energies where the strong coupling shrinks, but they are not the universal tool they are for electromagnetism.
Where the Precision Comes From

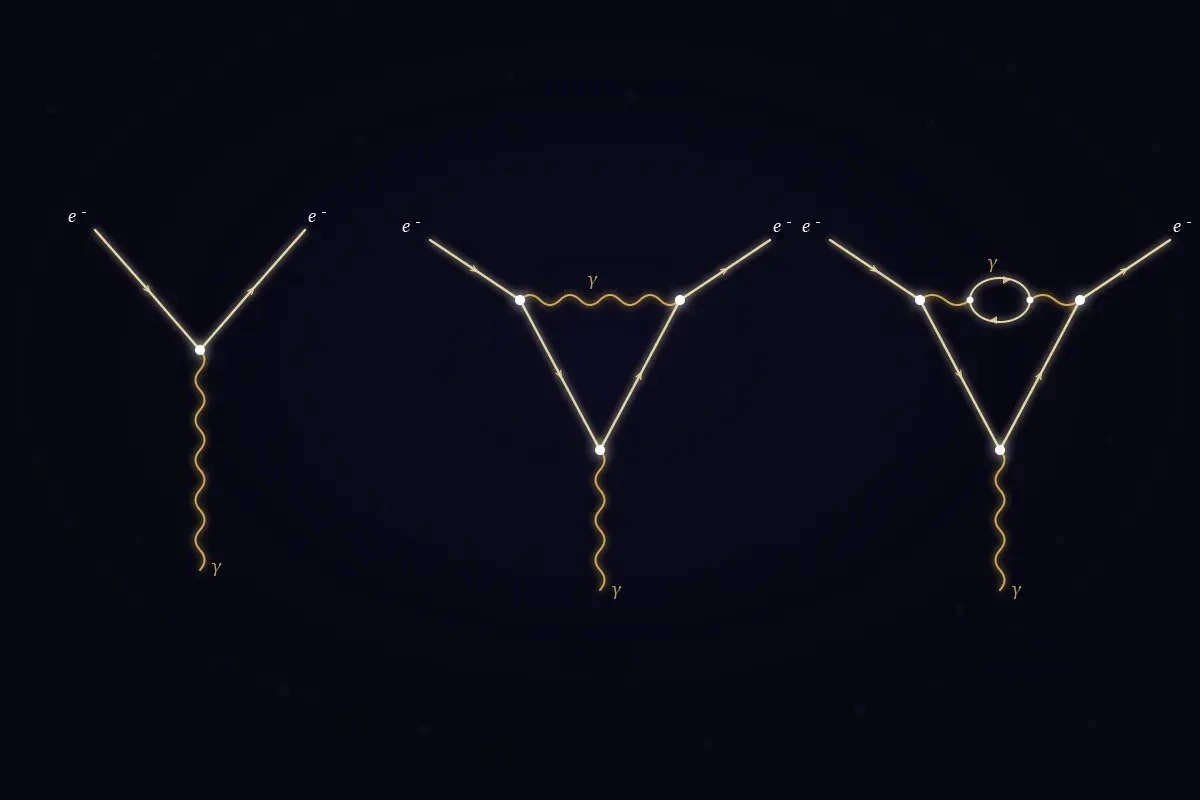

The electron has a magnetic moment, a measure of how strongly it responds to magnetic fields. Basic quantum mechanics predicts a value of exactly 2. Diagrams with one photon loop correcting the calculation shift that prediction slightly. Two loops shift it further. Three loops further still. Each higher-order diagram adds another small correction, and the more diagrams physicists include, the more precise the prediction becomes.
Modern calculations include all diagrams up to five loops. The theoretical prediction for the electron's magnetic moment agrees with experiment to roughly twelve decimal places. Twelve. That is the equivalent of measuring the distance from New York to Los Angeles with an error smaller than the width of a hair. No other theory in science has ever reached this level of precision, and the only reason it is possible is that Feynman diagrams made the calculation tractable.
Seeing Physics in the Picture
Feynman diagrams do more than organize arithmetic. They make certain physical facts visually obvious. Because arrows reversed in time represent antiparticles, the diagram for electron-positron annihilation is simply the reverse of pair production. Same picture, different direction of time. This is not a trick. It reflects a genuine symmetry of quantum field theory: every process has a time-reversed partner, and both use the same underlying interaction.
Conservation laws show up as rules for drawing. At every vertex, the charges entering must equal the charges leaving. Same for color charge in strong interactions. Same for lepton and baryon numbers in weak interactions. If you cannot draw a valid diagram for a process, that process cannot happen. A proton spontaneously turning into a positron and a photon would be electrically legal but would violate baryon number, and you cannot find a sequence of vertices that lets the diagram close. Conservation laws are literally built into the drawing rules.
Physicists use this as a sanity check. Before doing any arithmetic, draw the diagram. If it cannot be drawn with valid vertices, stop. The process is impossible. If it can be drawn, count loops to estimate how suppressed the process is. Lots of loops, rare process. Few loops, common process. Entire qualitative features of particle physics are visible directly from the sketches, before a single integral is computed.
A Universal Language
Feynman introduced these diagrams at a small conference in 1948. They were controversial at first. Julian Schwinger and Sin-Itiro Tomonaga had independently developed the same theory using more formal mathematical machinery. The three shared the 1965 Nobel Prize. Freeman Dyson later showed that Feynman's pictures and Schwinger's equations were mathematically equivalent, different languages describing the same physics. But the pictures won. They spread through the community because they were simply easier to use. By the 1960s, Feynman diagrams were the working language of particle physics.
They remain so today. Every paper in high-energy physics contains diagrams. Every prediction for a particle collider run at CERN starts with drawing the relevant diagrams and translating them into probabilities. The LHC reports its measurements in terms that presuppose this framework. When a graduate student calculates anything in particle physics, they draw diagrams before they write equations. The visual language has become the computational tool.
The Bigger Picture
Feynman diagrams are not pictures of reality. They are pictures of a calculation. The distinction matters. No electron ever "sees" a photon as a line drawing. Nature does not use diagrams. What nature does is evolve quantum fields according to their governing equations, and Feynman diagrams happen to be the most useful visual representation humans have found for organizing that evolution into something a person can actually compute with.
This is worth pausing on. The most precise predictions in all of science come from a visual notation invented by one person to make his own calculations easier. The notation spread because it worked, and it keeps working because it encodes the structure of quantum field theory with remarkable economy. Drawings that look like slingshots are how physicists predict the behavior of electrons to twelve decimal places, how Higgs bosons are found at colliders, how quark-gluon plasma is modeled, how the next generation of particle physics will be explored. A good visualization can be more than a teaching tool. Sometimes it is a calculating engine in disguise.
