Gravitational Waves
Ripples in Spacetime
Einstein's Doubt
In 1916, Albert Einstein realized his general theory of relativity predicted something extraordinary. If mass warps the fabric of spacetime, then accelerating mass should send ripples through spacetime - waves of stretching and compressing space itself, radiating outward at the speed of light. He called them gravitational waves. Then he spent years doubting whether they were physically real or just mathematical artifacts of his equations. The physics community debated for decades.
The problem was scale. Even the most violent events in universe - colliding black holes, exploding stars - produce distortions in spacetime so tiny that they seemed unmeasurable. To detect a gravitational wave from a pair of merging black holes a billion light-years away, you would need to measure a change in distance smaller than one-thousandth the width of a proton across four-kilometer arms. For nearly a century, detection seemed impossible.
Spacetime Itself Is the Wave
Gravitational waves are fundamentally different from every other type of wave. Electromagnetic waves are ripples in the electromagnetic field that travel through spacetime. Sound waves are pressure variations that travel through a medium. Gravitational waves are spacetime itself oscillating. There is no medium. There is no background. The fabric of reality is the wave.
When a gravitational wave passes through a region of space, it stretches space in one direction while simultaneously compressing it in the perpendicular direction. Then it reverses. This oscillating distortion is called a quadrupole pattern. If a gravitational wave passed through you right now, you would be stretched taller and thinner, then squeezed shorter and wider, in alternating cycles. You would not feel it - the distortions are far too small. But sensitive instruments can detect them.
Why a quadrupole specifically, and not the simpler patterns seen in other waves? The answer comes from conservation laws. A "monopole" radiation pattern would correspond to total mass pulsing in and out, which is forbidden because mass-energy is conserved. A "dipole" pattern would correspond to mass sloshing back and forth, which is forbidden because momentum is conserved. The simplest allowed pattern is quadrupole, where mass oscillates in a way that leaves both total mass and total momentum untouched but still radiates energy outward. Two masses orbiting each other produce exactly this pattern: their center of mass stays put, their total mass stays put, but the shape of their mass distribution oscillates. Conservation laws sculpt what gravitational waves are allowed to look like, and the allowed shape is a cross stretching one way, squeezing the other, forever alternating.
A Clock in the Sky
Direct detection had to wait until 2015, but gravitational waves were confirmed indirectly four decades earlier. In 1974, Russell Hulse and Joseph Taylor discovered a binary pulsar: two neutron stars orbiting each other. One was a pulsar whose radio pulses arrived with extraordinary regularity, providing a precise clock. By tracking pulse arrival times over years, they measured the orbital period shrinking, the two stars spiraling closer together. The rate of orbital decay matched Einstein's prediction for energy loss through gravitational wave emission to better than 0.2%.
This was not a marginal result. Over three decades of observation, the agreement between prediction and measurement was so precise that it left essentially no room for doubt. Gravitational waves carried energy away from the system at exactly the rate general relativity demanded. Hulse and Taylor received the 1993 Nobel Prize. Their discovery settled the century-old debate about whether gravitational waves were physically real and convinced the physics community that building a direct detector was worth the effort.
Hearing universe

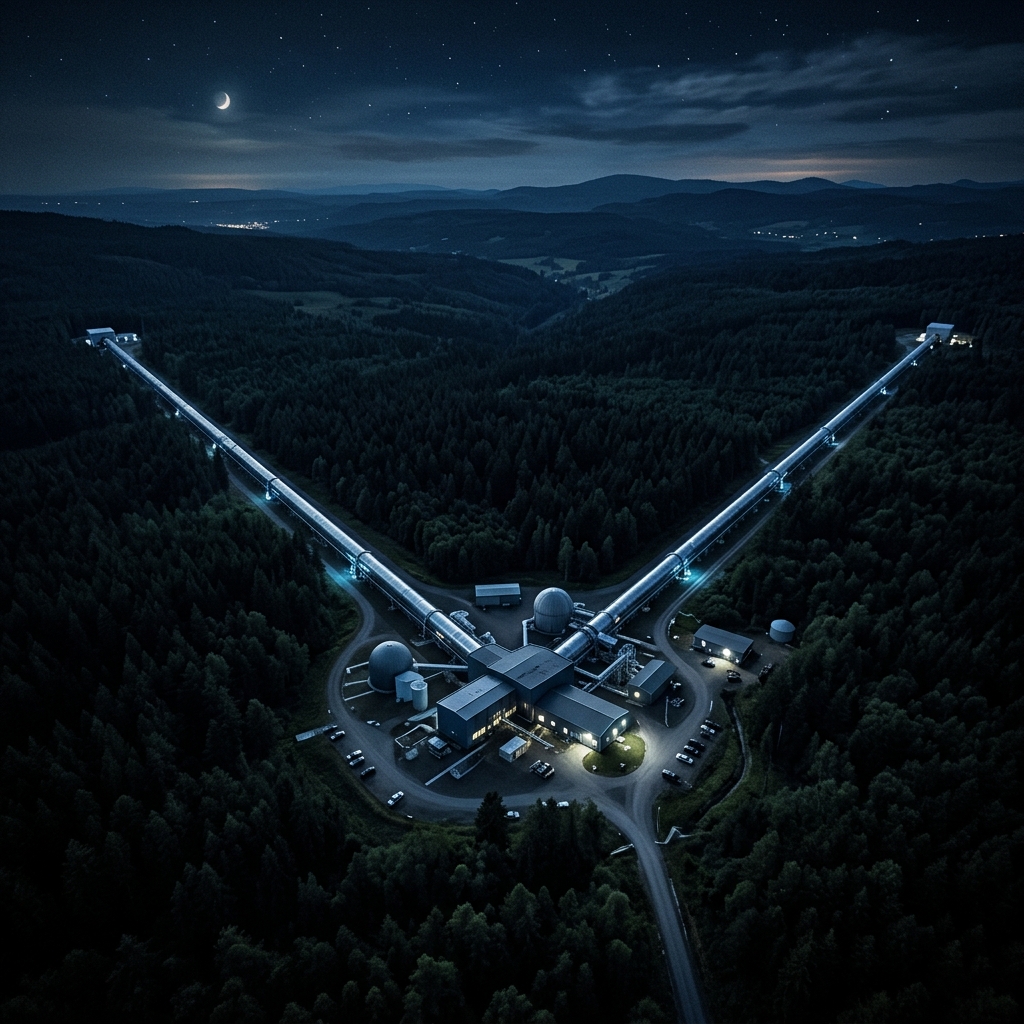

LIGO - the Laser Interferometer Gravitational-Wave Observatory - is the instrument that made the impossible possible. It uses two perpendicular laser beams, each bouncing back and forth along a 4-kilometer vacuum tube. When a gravitational wave arrives, it stretches one arm and compresses the other by a tiny amount. The laser beams, originally perfectly synchronized, fall slightly out of step. That phase shift is the signal.
On September 14, 2015, both LIGO detectors - one in Hanford, Washington, the other in Livingston, Louisiana - picked up the same signal 7 milliseconds apart. A rising frequency, a chirp, matching the mathematical prediction for two black holes spiraling into each other and merging. One was 36 solar masses, the other 29. They merged into a single black hole of 62 solar masses. The missing 3 solar masses had been radiated away as pure gravitational wave energy in a fraction of a second - more power than all the stars in observable universe combined.
Engineering the Impossible

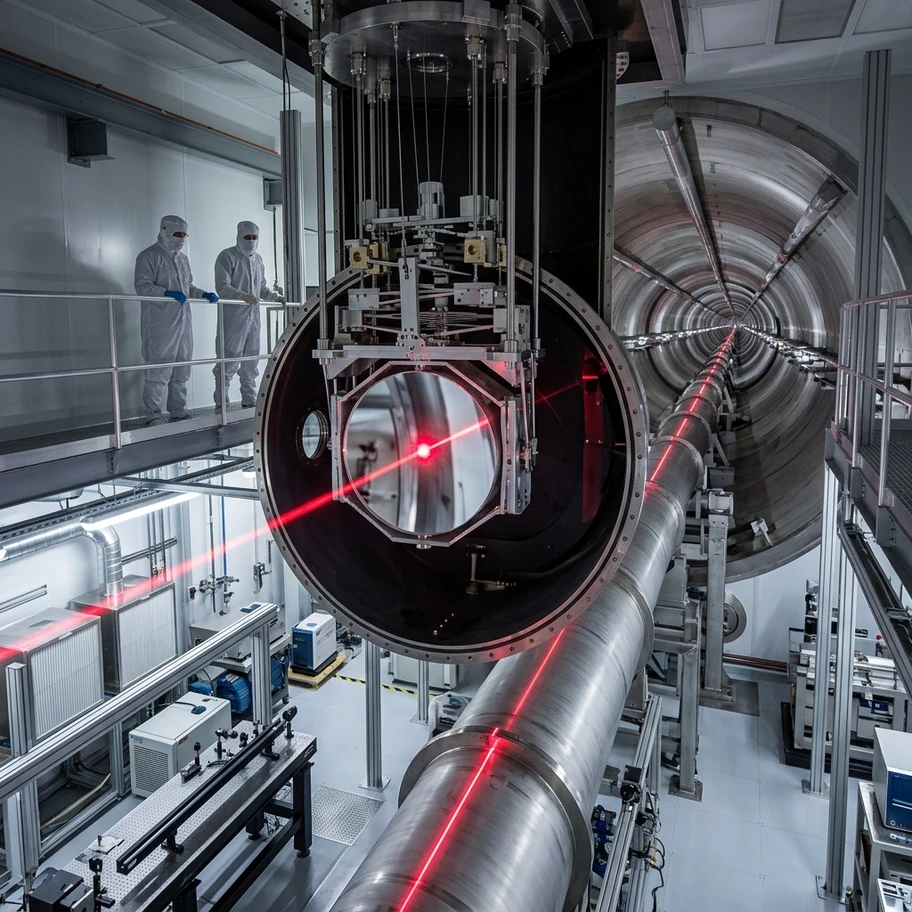

LIGO measures strains of about 10-21 – a fractional length change so small that across a 4-kilometer arm it corresponds to a distance shift of roughly 10-18 meters, less than a thousandth the diameter of a proton. To understand how extraordinary this is, consider what has to be overcome. Earth's surface vibrates constantly from ocean waves, traffic, wind, and tectonic creep. Each LIGO mirror hangs from a seven-stage pendulum isolation system that filters seismic vibrations by a factor of ten billion. The mirrors themselves are 40-kilogram cylinders of ultra-pure fused silica, polished to atomic smoothness.
Even atoms are a problem. Mirror atoms vibrate thermally, introducing random jitter. This thermal noise is managed by using materials with extremely low mechanical loss and by making the laser beam wide enough to average over millions of atomic vibrations. At the quantum level, photon shot noise limits how precisely the laser can track mirror positions. LIGO overcomes this by injecting squeezed light, quantum states of light engineered to have less noise in one property at the cost of more in another. The vacuum system enclosing the laser paths is one of the largest ultra-high vacuums on Earth: 10,000 cubic meters at one-trillionth of atmospheric pressure, preventing air molecules from scattering the beam. Every one of these problems could have killed the project. Solving all of them simultaneously is one of the greatest engineering achievements in history.
Light and Gravity Together
On August 17, 2017, LIGO and Virgo detected gravitational waves from something new - not black holes, but two neutron stars spiraling together. The signal lasted nearly 100 seconds, much longer than a black hole merger. Then, 1.7 seconds after the gravitational wave signal ended, the Fermi space telescope detected a short gamma-ray burst from the same direction. Within hours, telescopes worldwide swiveled to observe the aftermath.
What followed was a scientific bonanza. Optical telescopes saw a bright new point of light - a kilonova. Infrared observations revealed the spectral signatures of heavy elements being forged in the debris. Gold, platinum, uranium, and other elements heavier than iron were being created in real time. This single event confirmed what had long been hypothesized: neutron star collisions are a primary forge for the heaviest elements in universe. The gold in your ring may have been born in a collision like this one, billions of years ago.
This event, catalogued as GW170817, marked the birth of multi-messenger astronomy: observing the same cosmic event through fundamentally different channels. Gravitational waves told physicists the masses, spins, and distance of the merging neutron stars. Gamma rays revealed the jet. Optical and infrared light showed the kilonova and the heavy elements being forged. Radio waves traced the expanding debris over months. X-rays mapped the jet's interaction with surrounding gas. Each messenger carried information the others could not. Combined, they painted a picture no single channel could have provided alone.
Neutrinos add a third channel. The 1987 supernova in the Large Magellanic Cloud was first detected by neutrino observatories, hours before any telescope saw the light. Future detectors like IceCube and Hyper-Kamiokande are designed to catch neutrinos from core-collapse supernovae and potentially from neutron star mergers. A nearby event observed simultaneously in gravitational waves, light, and neutrinos would be the ultimate multi-messenger event, probing extreme physics from three independent angles. The universe has always been broadcasting on all channels. We are only now learning to listen to more than one at a time.
What Makes Waves
Every accelerating mass produces gravitational waves. You produce them when you wave your hand. But only the most violent events in the cosmos create waves strong enough to detect. Binary black hole mergers are the loudest, producing waves in the frequency range that LIGO can hear - roughly 10 to several thousand hertz. These events are brief and powerful, lasting fractions of a second to minutes.
Supermassive black hole binaries, millions to billions of times the mass of Sun, produce much lower frequency waves - oscillating over months to years. These are too slow for LIGO but have been detected by pulsar timing arrays. Networks of millisecond pulsars act as a galaxy-sized gravitational wave detector, revealing the background hum of supermassive black holes spiraling together throughout universe.
And then there are primordial gravitational waves - ripples produced during cosmic inflation in the first fraction of a second after Big Bang. If detected, they would carry information from earlier than any light can reach. They would be the oldest signal ever observed - a direct imprint from the birth of the observable universe.
A Background Hum Detected
In June 2023, four pulsar timing array collaborations around the world announced evidence for a gravitational wave background. NANOGrav in North America, the European Pulsar Timing Array, the Parkes Pulsar Timing Array in Australia, and the Chinese Pulsar Timing Array each independently reported long-wavelength spacetime ripples washing through our galaxy. The signal was too weak for LIGO and too slow for any conventional detector. It took two decades of monitoring the most precisely rotating pulsars in the sky to find it.
Here is how it works. A millisecond pulsar's spin is so regular that deviations of a billionth of a second in pulse arrival times are measurable. A gravitational wave passing between us and a pulsar stretches and compresses the space between, subtly shifting when pulses arrive. One pulsar on its own gives ambiguous noise. But if you monitor dozens of pulsars distributed across the sky, the correlations in their timing residuals carry a distinctive signature: pairs of pulsars close together on the sky correlate one way, pairs ninety degrees apart correlate the opposite way, and pairs on opposite sides of the sky correlate positively again. This angular pattern, called the Hellings-Downs curve, is the unambiguous fingerprint of gravitational waves.
The most likely source is a chorus: the combined hum of supermassive black hole pairs spiraling together in galaxy centers throughout universe. Not individual events, but their superposition. Wavelengths measured in light-years. Frequencies in nanohertz. Other possible contributors include cosmic strings, primordial black holes, and new physics from the very early universe. Separating those explanations from the supermassive black hole chorus is the next big project for pulsar timing. For now, a second gravitational wave channel is open: a low-frequency one that listens to the slow, patient dance of the largest black holes in existence.
The Bigger Picture
For all of human history, we understood universe by collecting light - first with our eyes, then with telescopes spanning the electromagnetic spectrum from radio to gamma rays. Gravitational waves opened an entirely new channel. We are no longer limited to seeing universe. We can now hear it. Events that produce no light at all - black hole mergers in empty space - are now observable.
The pace has accelerated dramatically. LIGO, Virgo, and KAGRA wrapped up their fourth observing run in November 2025, having collected hundreds of merger candidates - more than doubling the total catalog of detected events in a single run. The European Space Agency is building LISA - three spacecraft in triangular formation, separated by 2.5 million kilometers, orbiting the Sun. LISA will detect supermassive black hole mergers across entire observable universe and map millions of compact binary systems in our galaxy. On the ground, next-generation detectors like Einstein Telescope and Cosmic Explorer will increase sensitivity tenfold. The electromagnetic spectrum took centuries to fully explore. Gravitational wave astronomy opened its first window in 2015. Everything so far is just the beginning.
