Dimensions

Spacetime and the Fourth Coordinate

In everyday life, space and time feel completely separate. You walk through a room - that is space. You check the clock - that is time. Two different things, obviously. But one of the most surprising discoveries in physics is that this intuitive separation is not quite right. Einstein and Minkowski showed that space and time are deeply intertwined, forming a single four-dimensional fabric called spacetime. To specify an event - say, a supernova - you need four numbers. Three for where, one for when. Leave out any one and you cannot pinpoint it. The surprising part is not that you need both, but that they affect each other: how fast you move through space changes how fast you move through time.

Time is sometimes called a fourth dimension, and in a sense it is - but it behaves very differently from the spatial ones. You can walk backward in space but not in time. In the mathematics of spacetime, spatial coordinates and the time coordinate enter the distance formula with opposite signs. This is not a technicality. It is what makes time fundamentally unlike space, even though both are part of one unified fabric. Light, beautifully, travels along paths where these spatial and temporal contributions exactly cancel - which is why the speed of light marks such a special boundary in physics.

Here is the wonderful part: you are always moving through spacetime. Right now, sitting still, all your motion goes through time. You age at maximum rate. Start moving through space and something remarkable happens - some of your motion through time gets redirected into motion through space. Moving clocks literally tick slower. This is not a thought experiment. GPS satellites correct for it every day to keep your phone's location accurate. Speed through space trades against speed through time, and the exchange rate is set by the speed of light. So time really is a coordinate of this unified geometry - but not simply another spatial direction you could walk along. It has its own character, its own rules.

Flatland

In 1884, Edwin Abbott published a short novel called Flatland. It describes a world of two-dimensional beings living on a flat surface. They can move north, south, east, west, but they have no concept of up or down. Their entire reality is the plane they inhabit. To them, a fellow Flatlander looks like a line segment, because they see only a cross-section at their level. A circle looks the same as a sphere, until the sphere does something impossible.

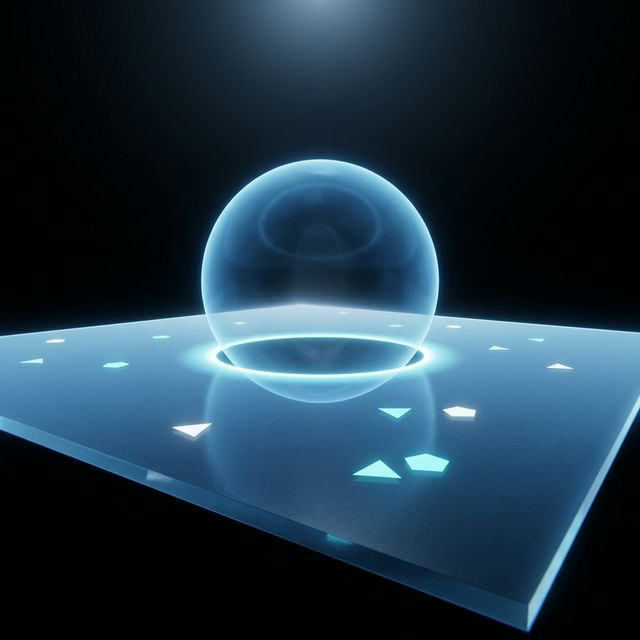

Imagine a three-dimensional sphere descending through Flatland. First contact is a single point appearing out of nowhere. Then a tiny circle, growing larger as more of the sphere passes through the plane. At the equator, the circle reaches maximum size. Then it shrinks again, contracts to a point, and vanishes. To Flatlanders, this is a deeply mysterious event. An object materialized, changed size, and disappeared. They have no framework for understanding that a simple sphere was passing through their world, because "through" requires a direction they cannot perceive.

Abbott's thought experiment is more than charming fiction. It is a precise analogy for our own situation. We are three-dimensional beings, and if a fourth spatial dimension exists, we are as blind to it as Flatlanders are to "up." A four-dimensional hypersphere passing through our three-dimensional space would appear as a point that swells into a sphere, reaches maximum size, then shrinks and vanishes. We would see a bizarre object appearing and disappearing with no obvious cause. Our inability to imagine a fourth perpendicular direction does not mean it cannot exist. It means our brains evolved to navigate three dimensions and stopped there.

We are Flatlanders to a being in four spatial dimensions

Hypercube

There is a beautiful way to build intuition for higher dimensions through construction. Start with a point, a zero-dimensional object. Drag it in one direction and it traces out a line segment: one dimension. Drag that line perpendicular to itself and it sweeps out a square: two dimensions. Drag that square perpendicular to itself and it sweeps out a cube: three dimensions. Now drag that cube perpendicular to all three existing directions, into the fourth spatial dimension, and it sweeps out a tesseract: a four-dimensional hypercube.

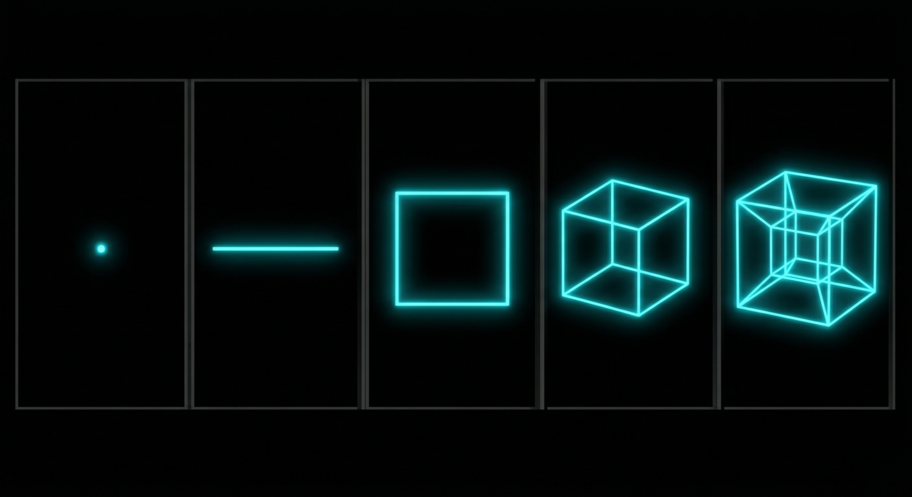

Point, line, square, cube, hypercube - each built by dragging the previous shape into a new direction

You cannot directly see a tesseract. But you can see its shadow. Hold a wireframe cube in front of a lamp and look at its two-dimensional shadow on a wall. You see a smaller square inside a larger square, connected at corners. The shadow looks nothing like a cube, but it contains all the structural information projected down one dimension. A tesseract works the same way. Project it into three dimensions and you see a smaller cube nested inside a larger cube, with edges connecting corresponding corners. Rotate the tesseract in four-dimensional space and its three-dimensional shadow morphs and flows in ways that seem impossible, with inner and outer cubes exchanging roles. What you are watching is the analog of rotating a cube and watching its flat shadow shift.

A cube has 8 vertices, 12 edges, and 6 faces. A tesseract has 16 vertices, 32 edges, 24 faces, and 8 cubic cells. Each property follows a clean pattern: going from dimension N to dimension N+1 doubles the vertices and adds connections. The mathematics is elegant and unambiguous even though visualization falters. This is a recurring theme in physics. When intuition cannot follow, mathematics leads, and the results are consistent, testable, and sometimes spectacularly confirmed by experiment.

Why Physics Needs Extra Dimensions

String theory, one of the leading candidates for a unified theory of physics, requires more than four dimensions of spacetime. Depending on the version, it needs ten or eleven. If string theory is correct, this is not an optional feature. The mathematics of vibrating strings is only self-consistent when spacetime has these specific dimensionalities. In fewer dimensions, the theory produces nonsensical results: negative probabilities, broken symmetries, equations that contradict themselves. Extra dimensions are the price of mathematical consistency - but only if string theory turns out to be the right framework.

If six or seven extra spatial dimensions exist, why do we not see them? The standard answer is compactification. Extra dimensions are curled up so tightly, at scales near the Planck length of roughly 10⁻³⁵ meters, that no experiment can currently resolve them. Imagine an ant on a garden hose. From far away, the hose looks one-dimensional, a line. But the ant knows the hose has a second dimension: it can walk around the circumference. The circular dimension is there, just too small to see from a distance. Extra dimensions in string theory work similarly. At every point in our familiar three-dimensional space, there may be six additional directions curled into a tiny compact shape.

The shapes these extra dimensions curl into are called Calabi-Yau manifolds, and their geometry matters enormously. Different shapes produce different physics. The way strings vibrate depends on the geometry of the space they inhabit, and those vibrations determine particle masses, coupling strengths, and symmetry groups. The particular Calabi-Yau manifold nature chose, if string theory is correct, determines why electrons have the mass they do, why there are three generations of matter, and why the forces have their observed strengths. Geometry at scales trillions of times smaller than a proton would dictate everything we observe.

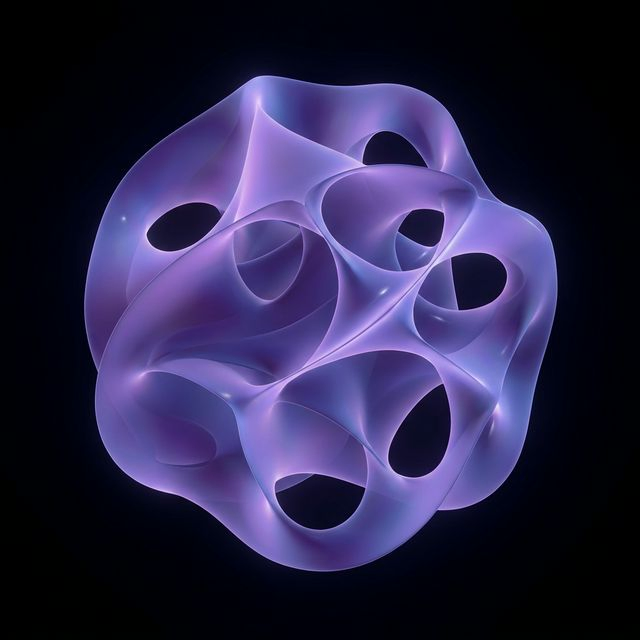

Possible shape of hidden dimensions at every point in space

Could We Detect Extra Dimensions

Extra dimensions are not purely theoretical speculation. They make predictions, and some of those predictions are testable. Spacetime curvature offers a window. In four-dimensional spacetime, gravitational effects follow an inverse-square relationship: double the distance, quarter the effect. But if extra dimensions exist, curvature might spread into them at very short distances, causing gravitational effects to weaken faster than inverse-square at small separations. Tabletop experiments have tested this down to distances below 0.1 millimeters and found no deviation so far. But the search continues, pushing to ever-shorter distances where deviations might appear.

Particle colliders offer another window. If extra dimensions exist at accessible energy scales, collisions could excite Kaluza-Klein modes: heavier copies of known particles whose extra mass comes from momentum in the hidden dimensions. These would appear as new resonances at specific energies. The Large Hadron Collider has searched for such signatures without success, but absence of evidence is not evidence of absence. The extra dimensions could simply be smaller than current experiments can probe.

Lisa Randall and Raman Sundrum proposed an elegant model in 1999 that addresses one of physics' deepest puzzles: why spacetime curvature effects are so extraordinarily weak compared to other interactions. In their framework, our three-dimensional universe is a membrane (or "brane") embedded in a higher-dimensional space. Curvature propagates into the extra dimension, diluting its effects on our brane, while other interactions are confined to the brane and remain strong. This geometric explanation is testable in principle, because it predicts specific patterns in gravitational wave signals and collider data.

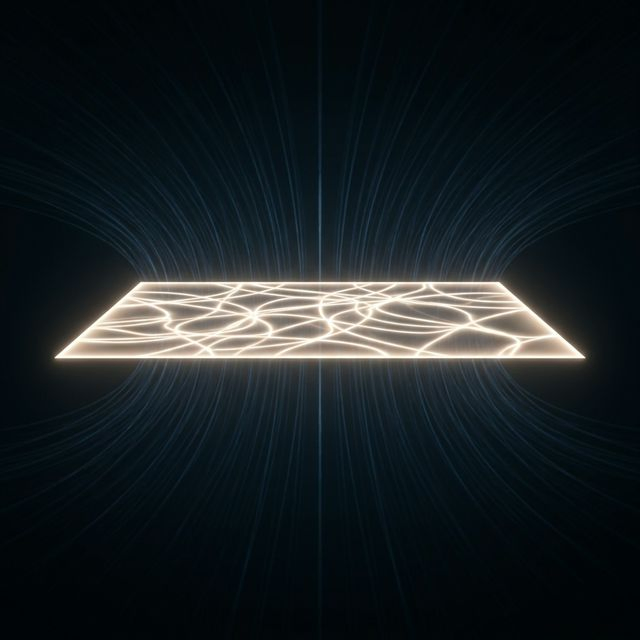

Curvature might spread into dimensions we cannot see

As of now, no experiment has confirmed extra spatial dimensions. Every test has come back consistent with plain four-dimensional spacetime. But the theoretical motivation remains strong, and the experimental frontier is still advancing. Whether extra dimensions turn out to be real or whether they are a mathematical detour that led physics somewhere unexpected, they have already transformed how we think about space, geometry, and the possible architecture of reality. The question is not settled. It is actively being investigated, and the answer, whatever it turns out to be, will reshape our understanding of what spacetime actually is.
